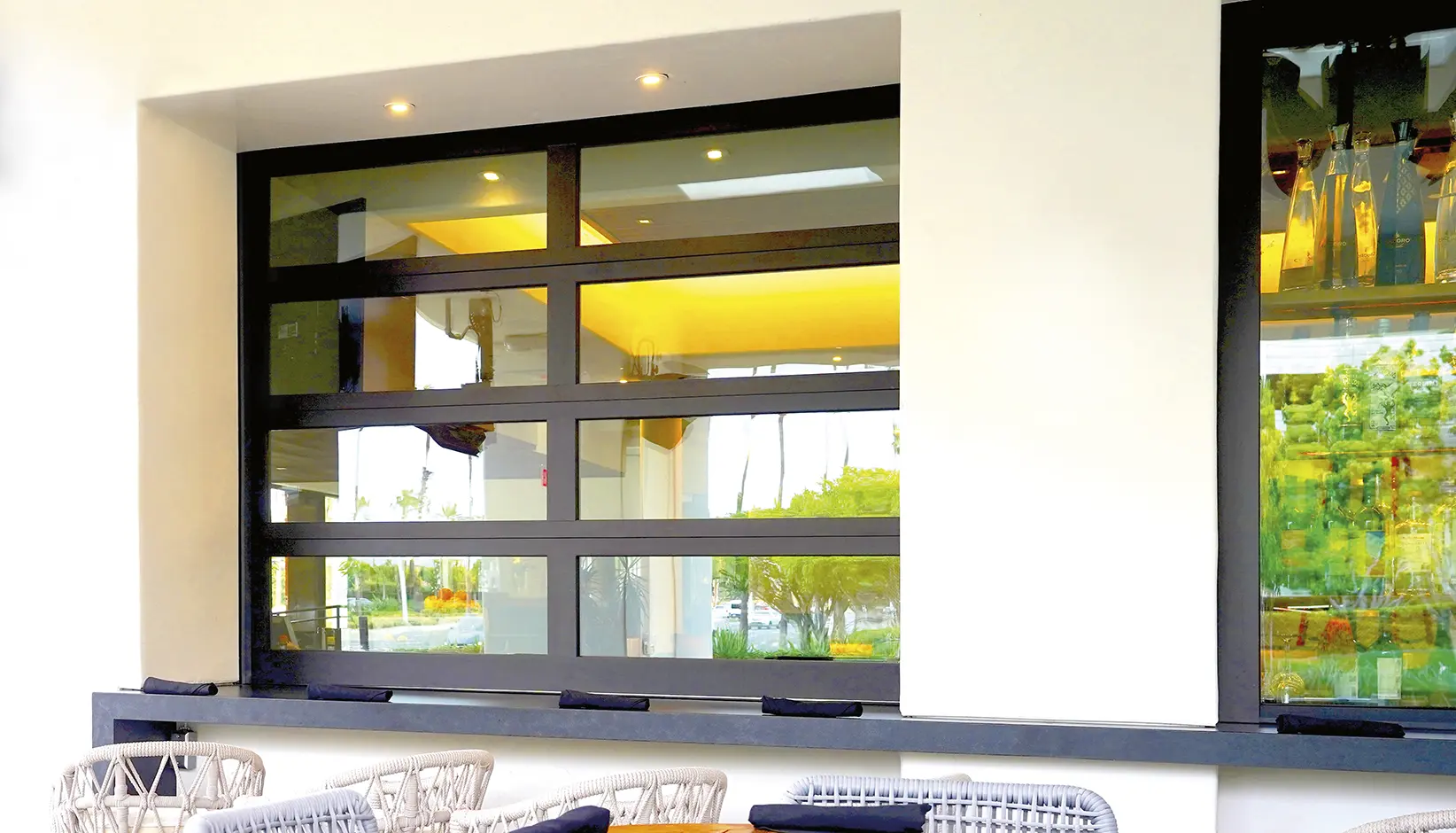

VertiStack® Clear Door

by

VertiStack® Clear allows you to bring the outside in. These compact, vertically stacked sections take up minimal ceiling space so it won’t interfere with mechanical, electrical or plumbing fixtures.

Contact us about this product

The VertiStack Clear door features a unique construction with sections that stack above the opening

The VertiStack Clear door features a unique construction with sections that stack above the opening, eliminating the need for overhead tracks. This allows for a clear ceiling and won't conflict with mechanical, electrical or plumbing fixtures located in the ceiling. Designed with a clean, modern aesthetic, there are no hinges or exposed tracks or cables, and it is available with a variety of aluminum finishes and window materials.

Download Product Brochure

Model VS904 Standard Specifications

Min Opening Width*
4'6"
Max Opening Width*
20'0"
Min Opening Height
4'0"
Max Opening Height
14'0"
Thickness
2 1/8"
Insulation
N/A

Model VS904U Standard Specifications

Min Opening Width*
4'6"
Max Opening Width*
20'0"
Min Opening Height
4'0"
Max Opening Height
14'0"
Thickness
2 1/8"
Insulation
Intellicore insulated rails & stiles

*The door will always be 6” wider than the opening width, so door width range is 5’0 to 20’6”.

This product is available for commercial applications only, click here for the residential version.

For interior mount only.


Calculate Number of Panels and Sections

Door Opening Width*Number of Panels
4'6" - 8'8"2
8'9"-12'8"3
12'9"-15'8"4
15'9"-19'8"5
19'9"-20'0"6


Door HeightNumber of Sections
4'0"-5'8"3
5'9"-7'0"4
7'1"-8'4"5
8'5"-9'8"6
9'9"-11'2"7
11'3"-12'8"8
12'9"-14'0"9



Product Approvals:

Florida Product Approval #FL42132

Glass Panel Options
VS904
FULL-VIEW (VS904/VS904U)
Glazing Material Options
Clear Glass Glazing Material Clopay Garage Doors
Clear Glass
Clear Glass Glazing Material Clopay Garage Doors
Gray Tinted Glass
Clear Glass Glazing Material Clopay Garage Doors
Bronze Tinted Glass
Clear Glass Glazing Material Clopay Garage Doors
Mirrored Glass*
Clear Glass Glazing Material Clopay Garage Doors
Obscure Glass
Commercial-White-Laminate-Glass
White Laminate Glass*
Commercial-Black-Laminate-Glass
Black Laminate Glass*
Commercial-Frosted-Acrylic
Frosted Glass or Acrylic
Commercial-Clear-Acrylic
Clear Acrylic
Commercial-Gray-Acrylic
Gray Acrylic
Commercial-White-Acrylic
White Acrylic
Commercial-Clear-Polycarbonate
Clear Polycarbonate
Commercial-Bronze-Polycarbonate
Bronze Polycarbonate
Aluminum Panel Color Match Clopay Glazing Material Garage Door Option
Aluminum Panel (Color Matched)

*Mirrored and laminate not available in 1/2"

Glass thickness available in 1/8", 1/4" and 1/2". Tri-wall polycarbonate thickness available in 5/8".

**Tempered glass options available

Color Options
Clear Aluminum Anodized
Clear Aluminum (Anodized)
Standard White
Standard White
Bronze-Painted
Bronze (Painted)
Chocolate-Painted
Chocolate (Painted)
Bronze-Anodized
Bronze Anodized*
Black-Anodized
Black (Anodized)*
Dark-Bronze-Anodized
Dark Bronze Anodized*
Request Color Samples

*Additional cost and lead time may apply. The use of “Bronze (Painted)” is recommended due to slight color variation that may occur during the anodizing process.

Safety Features

Strap Brake Safety System

Situated at the bottom section of the door and within the wall angles, this system is triggered when strap tension is lost. It releases the brake lever and engages the brake teeth to prevent the bottom and subsequent sections from falling.

Spring & Motor Covers

Optional spring and motor covers give VertiStack® Clear Doors a more elegant and refined look with even more versatility.

Spring Covers - provide a more design-driven look

Motor Covers - conceal the operator for a more attractive look



Models BIM Shop Drawing Specification Literature (PDF) Instruction Manual (PDF) Warranty
VS904
  • https://cdn.clopay.com/public/documents/Doors-Industrial_Clopay_VertiStack-Clear-Stacking-Door_VS904.rfa
  • https://cdn.clopay.com/public/documents/SpecVS904.docx
  • https://literature.clopay.com/pdf_files/WAR-VERTISTACK-22.pdf
VS904U
  • https://clopaydoor.com/docs/default-source/commercial-specs/spec_vs904u.docx
  • https://literature.clopay.com/pdf_files/WAR-VERTISTACK-22.pdf

25,000 cycle torsion springs

Section locking devices on both sides of the door for increased security

High-strength strap assembly

Commercial 10 ball rollers

2” track mounted to a full-height 12-gauge wall angle

This product is available for commercial applications only, not for residential applications at this time.
