INDUSTRIAL SERIES

by

Ribbed Steel Commercial Doors Available with or without Insulation

Contact us about this product

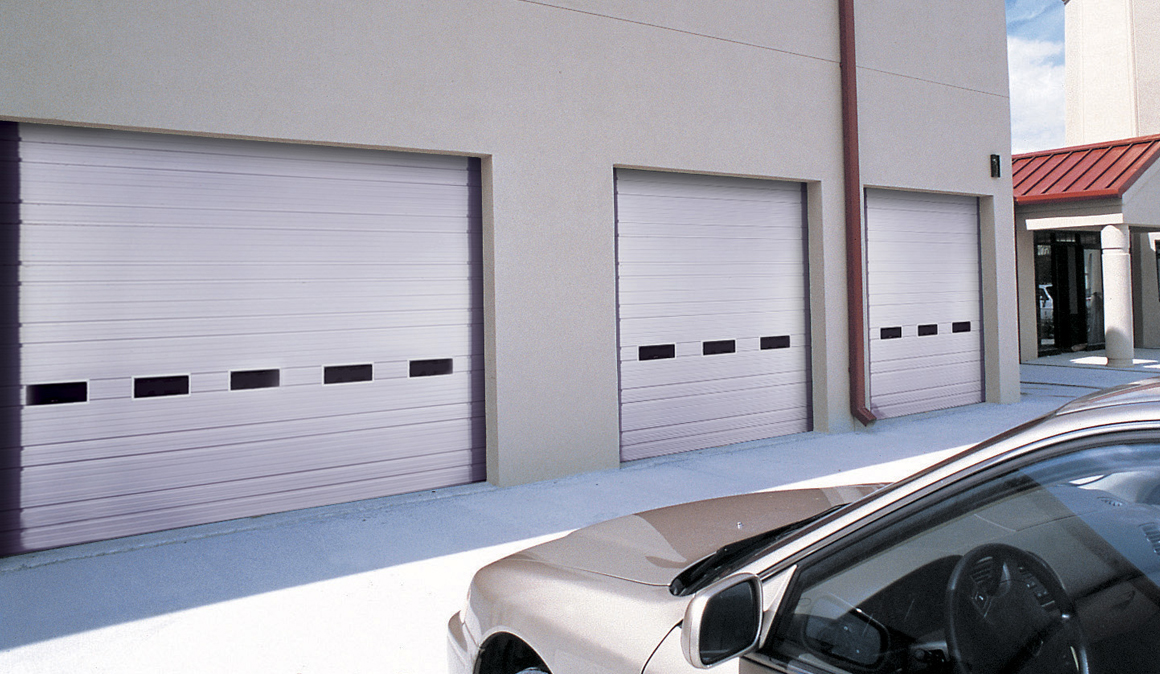

Industrial Series doors feature a variety of standard ribbed

Clopay Industrial Series overhead doors provide a combination of performance and reliability for a range of industrial applications. For increased energy efficiency, polystyrene insulated insulation with a vinyl or steel backer, is available.

These commercial doors offer an assortment of flush, ribbed or raised panel designs in a variety of colors, textures, windows and steel gauges. Ideal applications include warehouses, loading docks and industrial and agricultural facilities.

Download Product Brochure
Model Section Thickness Panel Design Ext. Steel Gauge Backer R-value* Max Width** Max Height
520 2" Minor & Deep Ribs 20 Gauge N/A N/A 26'2" 20'0"
520S 2" Minor & Deep Ribs 20 Gauge Pre-painted 30 gauge steel back cover 6.6 26'2" 20'0"
522 2" Flush 20 Gauge N/A N/A 24'2" 24'0"
522S 2" Flush 20 Gauge Pre-painted 30 gauge steel back cover
6.6** 24'2" 24'0"
524 2" Minor & Deep Ribs 24 Gauge N/A N/A 24'2" 20'0"
524V 2" Minor & Deep Ribs 24 Gauge Polyethylene vinyl back cover 6.6 26'2" 20'0"
524S 2" Minor & Deep Ribs 24 Gauge Pre-painted 30 gauge steel back cover 6.6 24'2" 20'0"
525 2" Minor & Deep Ribs 25 Gauge N/A N/A 20'2" 16'0"
525V 2" Minor & Deep Ribs 25 Gauge Polyethylene vinyl back cover 6.6 20'2" 16'0"
525S 2" Minor & Deep Ribs 25 Gauge Pre-painted 30 gauge steel back cover 6.6 20'2" 16'0"
664 2 1/8" Raised Panel Steel 24 Gauge N/A N/A 20'2" 16'0"
664V 2 1/8" Raised Panel Steel 24 Gauge Polyethylene vinyl back cover 6.3 20'2" 16'0"


*Calculated door section R-value is in accordance with DASMA TDS-163



Page Updated August 7, 2020


Insulated and Non-insulated doors come with a variety of options to address your building requirements. Options below are not available on all models. See model specific literature or consult a Clopay commercial dealer for option availability.

Design Options:

  • Windows
  • 24"x6"
  • 24"x12"
  • Full View (pre-painted white or brown or clear anodized)

COLOR OPTIONS:

STANDARD WHITE
STANDARD WHITE
Almond
ALMOND*
Desert-Tan
DESERT TAN*
Sandtone
SANDTONE*
Chocolate  Brown
Chocolate BROWN
Commercial Tan
COMMERCIAL TAN*
GRAY
GRAY*
TRINAR® WHITE
TRINAR® WHITE*

* Available on select models. For more information regarding color availability, click here.

Performance Options:


  • High Cycle Springs (25K, 50K and 100K available)
  • 3" heavy duty track (where not standard)
  • Outside keyed Security Lock
  • Double End Stiles
  • Design pressure rated (WindCode)
  • Impact Rated
  • Photo eyes, sensing edges and Operators
  • Extended 8-Year Hardware Warranty
  • Header (top) and Jamb Seals
  • High Performance Hardware Upgrade

Custom Options:

  • Mullions

Model - 520/524/525

Panel Design: 2" thick roll formed ribbed steel



Steel Gauge: 20 ga (.034" min) - Model 520, 24 ga (.022" min) - Model 524and 25 ga (.019 min) - Model 525 ribbed steel sections
Joint Design: Tongue and groove
Thickness/Insulation: No insulation
Hardware: 14 gauge hinges, commerical 10-ball steel rollers, 10,000 cycle torsion springs
Colors: Pre-painted white or brown (520/525)
Pre-painted white, brown, tan or gray (524)
Limited Warranty: 10-year finish against rust / one-year material & workmanship

MODEL 520S

features_520S
Panel Design: 2" thick roll formed stucco embossed ribbed steel
Steel Gauge: 20 gauge (.034" min) for maximum dent resistance
Joint Design: Tongue and groove
Thickness /Insulation 1-3/8" thick polystyrene insulation with pre-painted 30 gauge steel backcover
Thermal Conductivity R-Value 6.6*
Paint System: 3-stage paint process delivers maintenance free finish that resists rust perforation
Colors Pre-painted white or brown
Limited Warranty: 10-year paint / one-year material & workmanship

MODEL 522/522S

features_520S
Panel Design: 2" thick roll formed stucco embossed flush steel
Steel Gauge: 20 gauge (.034" min) for maximum dent resistance
Joint Design: Tongue and groove
Thickness /Insulation 1-3/8" thick polystyrene insulation with pre-painted 30 gauge steel backcover
Thermal Conductivity R-Value 6.6*
Paint System: 3-stage paint process delivers maintenance free finish that resists rust perforation
Colors Pre-painted white or brown
Limited Warranty: 10-year paint / one-year material & workmanship

MODEL 524V / 524S

features_524V-524S
Panel Design: 2" thick roll formed stucco embossed steel
Steel Gauge: 24 gauge (.022" min) ribbed steel sections
Joint Design: Tongue and groove
Thickness /Insulation

1-3/8" thick polystyrene insulation with polyethylene vinyl backcover (524V)

1-3/8" thick polystyrene insulation with pre-painted 30 gauge steel backcover (524S)

Thermal Conductivity R-Value 6.6*
Paint System: 3-stage paint process delivers maintenance free finish that resists rust perforation
Colors Pre-painted white, brown, tan or gray
Limited Warranty: 10-year paint /one-year material & workmanship

MODEL 525V / 525S

features_525V-525S
Panel Design: 2" thick roll formed smooth steel with combination of deep minor ribs
Steel Gauge: 25 gauge (.019" min)
Joint Design: Tongue and groove
Thickness /Insulation

1-3/8" thick polystyrene insulation with polyethylene vinyl backcover (525V)

1-3/8" thick polystyrene insulation with pre-painted 30 gauge steel backcover (525S)

Thermal Conductivity: R-Value 6.6*
Paint System: 3-stage paint process delivers maintenance free finish that resists rust perforation
Colors: Pre-painted white or brown
Limited Warranty: 10-year paint / one-year material & workmanship

Model - 664

Panel Design: 1 7/8" thick roll formed steel
Steel Gauge: 24 gauge (.22" min) raised panel door
Joint Design: Tongue and groove
Thickness & Insulation No insulation
Hardware: 14 gauge hinges, commerical 10-ball steel rollers, 10,000 cycle torsion springs
Colors: Pre-painted snowmist white, chocolate, brown, almond, sandstone, or desert tan.
Limited Warranty: 10-year finish against rust through / one-year material & workmanship

MODEL 664V

652 Cutaway Art
Panel Design: 1-7/8" thick woodgrain embossed raised panel steel
Steel Gauge: 24 gauge (.022" min) ribbed steel sections
Joint Design: Tongue-and-groove
Thickness /Insulation 1-3/8" thick polystyrene insulation with polyethylene vinyl backcover
Thermal Conductivity R-Value 6.3*
Paint System 3-stage paint process delivers maintenance free finish that resists rust perforation
Colors Pre-painted white, brown, tan or gray; Trinar white or beige
Limited Warranty: 10-year paint / one-year material & workmanship

*Calculated garage door section R-value is in accordance with DASMA TDS-163.

Models BIM Shop Drawing Specification Literature (PDF) Instruction Manual (PDF) Warranty
20-Gauge
Model 520 Ribbed, 20 gauge RFA Icon PDF IconDXF IconDWG Icon DOC IconRTF IconPDF Icon Extended 8-Year Hardware Warranty520,520S Brochure Installation Manual PDF Icon
Model 522 Ribbed , 20 gauge RTF IconPDF IconDOC Icon 522,522s Brochure Installation Manual PDF Icon
24-Gauge
Model 524 Ribbed, 24 gauge RFA Icon DWG IconDXF IconPDF Icon DOC IconPDF IconRTF Icon Extended 8-Year Hardware Warranty524 Brochure Installation Manual PDF Icon
Model 664 Raised Panel, 24 gauge PDF IconDWG IconDXF Icon RTF IconPDF IconDOC Icon 664, 664V Brochure Installation Manual PDF Icon
Raised Panel Vinyl Backed Model 664V PDF IconDWG IconDXF Icon DOC IconRTF IconPDF Icon 664V Brochure Installation Manual PDF Icon
Ribbed Steel Backed Model 520S RFA Icon DXF IconDWG IconPDF Icon DOC IconRTF IconPDF Icon Extended 8-Year Hardware Warranty520,520S Brochure Installation Manual PDF Icon
Ribbed Steel Backed Model 522S DOC IconPDF IconRTF Icon 522,522s Brochure Installation Manual PDF Icon
Ribbed Steel Backed Model 524S RFA Icon PDF IconDWG IconDXF Icon DOC IconRTF IconPDF Icon Extended 8-Year Hardware Warranty522, 522S Brochure524, 524V, 524S Brochure Installation Manual PDF Icon
Ribbed Vinyl Backed Model 524V RFA Icon PDF IconDWG IconDXF Icon DOC IconRTF IconPDF Icon 524V Brochure Installation Manual PDF Icon
25-Gauge
Model 525 Ribbed, 25 gauge RFA Icon DWG IconDXF IconPDF Icon DOC IconRTF IconPDF Icon 525 Brochure Installation Manual PDF Icon
Ribbed Steel Backed Model 525S RFA Icon DWG IconDXF IconPDF Icon DOC IconRTF IconPDF Icon 525S Brochure Installation Manual PDF Icon
Ribbed Vinyl Backed Model 525V RFA Icon DWG IconDXF IconPDF Icon RTF IconDOC IconPDF Icon 525, 525V, 525S Brochure Installation Manual PDF Icon

COMMERCIAL HARDWARE

Commercial doors are designed with hardware to meet demanding applications of commercial building usage. All commercial doors are provided with the following hardware as standard. For additional upgraded hardware see “Options” tab.

  • 14 gauge hinges
  • Commercial 10 ball steel rollers with options for nylon tire rollers
  • 10,000 cycle torsion springs
  • Steel step plate and lift handle for easy operation
  • Inside slide lock for increase security
  • 19 gauge steel hinge support plates
  • 18-gauge single end stiles; 16-gauge double end stiles
  • Galvanized aircraft cables with 7:1 safety factory
  • 2” or 3” track in a variety of configurations to meet building design requirements

COMMERCIAL TRACK APPLICATIONS

In commercial settings, space utilization and space constraints are important factors in choosing the correct hardware configuration for your application. Clopay track offerings and options enable you to make the most efficient use of available space. Options include standard lift, low head room front or rear mount, follow the roof pitch, full vertical or combination of these options.  Learn more

COMMERCIAL TORSION SPRINGS

Designed to counterbalance even the largest doors, commercial torsion spring assemblies can be designed for Industry standard 10,000 cycles or can be upgraded to 25,000, 50,000 or 100,000 expected life cycles. . Click here for details

Model Section Thickness Panel Design Ext. Steel Gauge Backer R-value* Max Width** Max Height
520 2" Ribbed Steel 20 Gauge N/A N/A 26'2" 20'0"
520S 2" Minor & Deep Ribs 20 Gauge Pre-painted 30 gauge steel back cover 6.6 26'2" 20'0"
522 2" Flush 20 Gauge N/A N/A 24'2" 24'0"
522S 2" Flush 20 Gauge Pre-painted 30 gauge steel back cover 6.6** 24'2" 24'0"
524 2" Ribbed Steel 24 Gauge N/A N/A 24'2" 20'0"
524V 2" Minor & Deep Ribs 24 Gauge Polyethylene vinyl back cover 6.6 26'2" 20'0"
524S 2" Minor & Deep Ribs 24 Gauge Pre-painted 30 gauge steel back cover 6.6 24'2" 20'0"
525 2" Ribbed Steel 25 Gauge N/A N/A 20'2" 16'0"
525V 2" Minor & Deep Ribs 25 Gauge Polyethylene vinyl back cover 6.6 20'2" 16'0"
525S 2" Minor & Deep Ribs 24 Gauge Pre-painted 30 gauge steel back cover 6.6 20'2" 16'0"
664 2 1/8" Raised Panel Steel 24 Gauge N/A N/A 20'2" 16'0"
664V 2 1/8" Raised Panel 24 Gauge Polyethylene vinyl back cover 6.3 20'2" 16'0"

*Calculated door section R-value is in accordance with DASMA TDS-163
