ROLL-UP SHEET DOORS
by
Coiling Steel Sheet Doors Available in A Range of Gauges and Colors
Contact us about this product

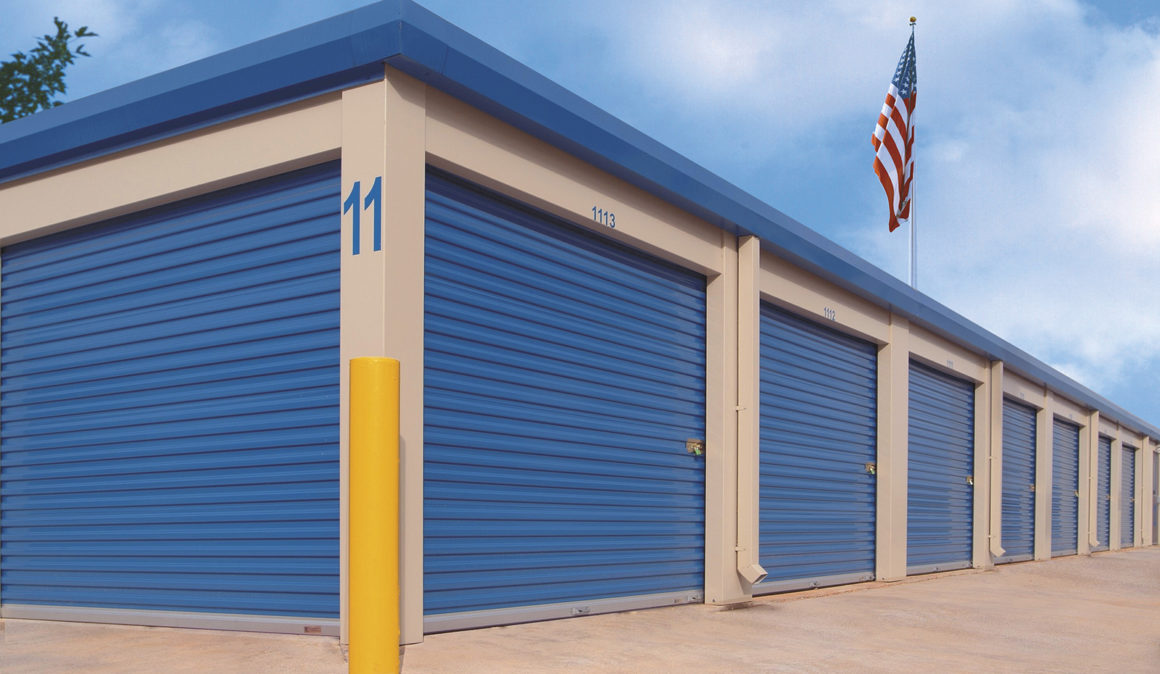

Roll-up sheet doors are ideal for mini warehouse and storage facilities
Roll-up sheet doors are ideal for mini warehouses and self-storage facilities with the goal of added security. Constructed from 26ga by 24 in wide sheets of steel roll formed with integral grooves that are hemmed together to form a continuous sheet guided vertically by roll formed guides.
Download Product Brochure| 160C | Heavy Duty | 12" Coil |
| 157C | Medium Duty | 12" Coil |
| 150C | Light Duty | 9" Coil |
Commercial Garage Doors: Coiling / Roll Up Sheet Doors
Constructed from 26ga by 24 in wide sheets of steel roll formed with integral grooves that are hemmed together to form a continuous sheet guided vertically by roll formed guides. The sheet door coils around a spring loaded shaft above the header as the door is opened. Designed with ease of installation in mind.
High Performance Hardware upgrade available
| 160C | Heavy Duty | 12" Coil |
| 157C | Medium Duty | 12" Coil |
| 150C | Light Duty | 9" Coil |
- 26 gauge hot-dipped galvanized steel curtain with a baked-on silicone polyester top coat.
- Roll-formed guides of hot-dipped galvanized steel (18 gauge 150C, 16 gauge 157C and 12 gauge 160C).
- Self-lubricating wearstrips on curtain prevent metal-to-metal contact and muffle door noise.
- Curtains are prepainted inside and out to inhibit rust. Hot-dipped, galvanized steel is painted with primer and given a tough oven-baked silicone polyester top coat, to provide the most rust-resistant steel door available.
- Heavy-duty bottom bar withstands the external elements.
- Full bulb-type bottom weatherstrip ensures proper fit along irregular floors.
BAKED-ON SILICONE POLYESTER PAINT
STANDARD COLORS
Use for reference only. Premium colors are an upcharge.
| Models | BIM | Shop Drawing | Specification | Literature (PDF) | Instruction Manual (PDF) | Warranty |
|---|---|---|---|---|---|---|
| 26 Gauge Steel Curtain | ||||||
| 150C |  |
 |
CMDC-ROLLUPSS-10.pdf | Installation_150C.pdf | |
|
| 157C | |
|
CMDC-ROLLUPSS-10.pdf | Installation_157C.pdf | |
|
| 160C | |
|
CMDC-ROLLUPSS-10.pdf | Installation_160C.pdf | |
|
| 160C | Heavy Duty | 12" Coil |
| 157C | Medium Duty | 12" Coil |
| 150C | Light Duty | 9" Coil |
